Booking crane rental in Abu Dhabi sounds simple until you’re asked one question: what tonnage do you need? Get it wrong, and you either pay for more crane than the job requires, or worse, book one that can’t safely handle your lift.
This guide breaks down how crane tonnage works, what each capacity range is typically used for, and how to figure out the right size for your project in Abu Dhabi.
Why Tonnage Matters

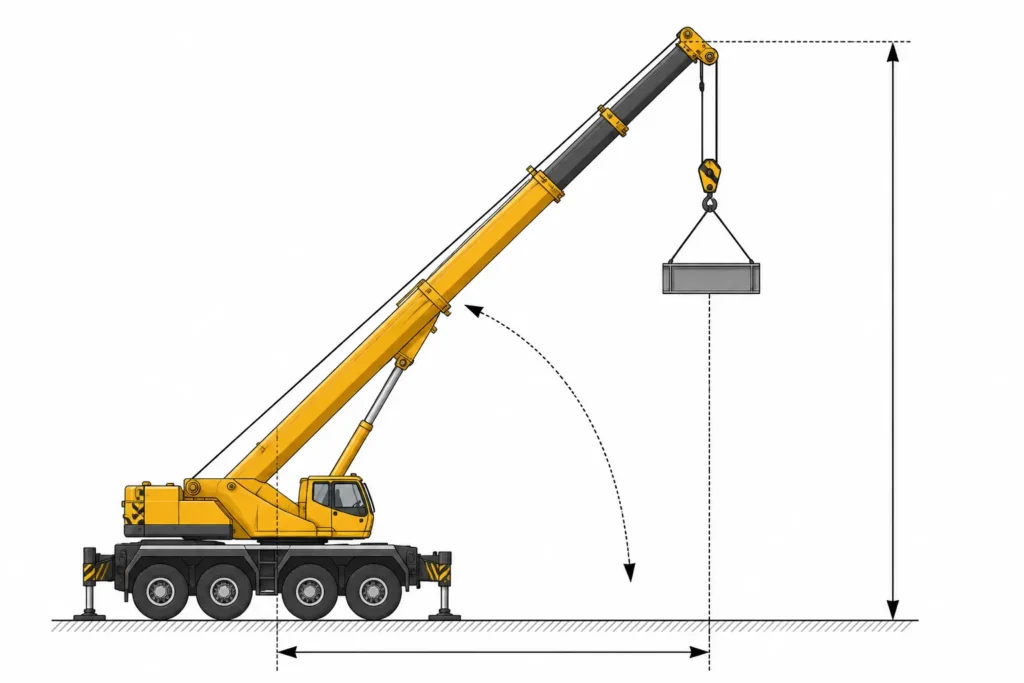

A crane’s “tonnage” refers to its maximum lifting capacity — the heaviest load it can safely lift at a given boom length and radius. Whether you’re arranging crane rental in Abu Dhabi for a small site or a major project, the right tonnage depends on three things together:
- Load weight — how heavy is what you’re lifting?
- Lift radius — how far from the crane does the load need to travel?
- Boom height — how high does the load need to go?
A crane’s lifting capacity drops as the boom extends further out or higher up. That’s why two projects lifting the same weight can need very different crane sizes, depending on site layout and reach.

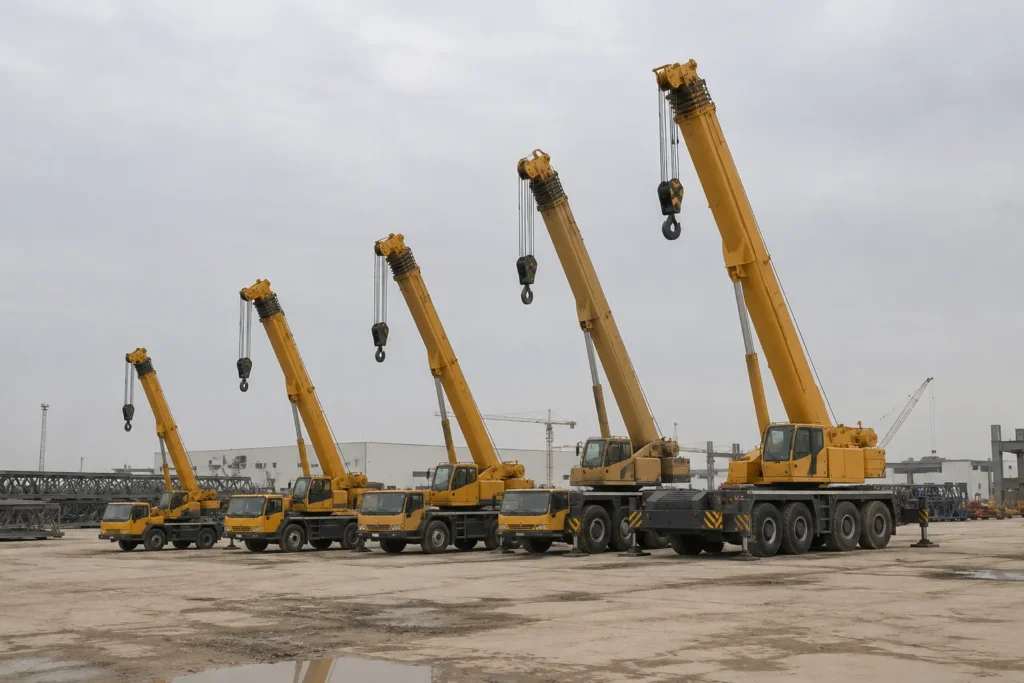

Crane Tonnage Guide (25 to 200 Ton)
Here’s a general breakdown of what each tonnage range is typically used for on construction and industrial sites in Abu Dhabi:
| Tonnage | Typical Use |
|---|---|
| 25 ton | Small lifts, HVAC units, light steel structures, tight urban sites |
| 50 ton | Precast concrete panels, mid-size structural steel, general construction lifts |
| 75 ton | Larger structural components, industrial equipment installation |
| 100 ton | Heavy structural steel, large precast elements, taller reach requirements |
| 200 ton | Major infrastructure projects, heavy industrial equipment, long-reach or high-capacity lifts |
A quick rule of thumb: if you’re unsure between two tonnages, it’s usually safer (and often not much more expensive) to size up slightly rather than risk booking a crane that can’t handle the load at your required radius and height.
How to Calculate the Right Tonnage for Your Lift
Before requesting a crane, gather these details — they’ll help your rental provider recommend the right size quickly:
- Exact weight of the load (including any rigging or attachments)
- Lift radius — the horizontal distance from the crane to where the load needs to go
- Lift height — how high the load needs to travel
- Site access — space for the crane and any ground condition considerations
- Boom length required — this affects how much capacity the crane has left for your specific lift
Crane specification sheets show a “load chart” for each model — a table showing exactly how much weight the crane can lift at different boom lengths and radii. A 25 ton crane, for example, might lift its full 25 tons close to the base, but far less than that once the boom is extended out or up. This is why matching load weight alone to a tonnage number isn’t enough — the load chart is what actually determines whether a crane can do your lift safely.
Common Mistakes When Choosing Crane Size
Only looking at maximum tonnage. A crane’s maximum rated capacity is usually only achievable at a very short boom length and radius — not representative of most real job conditions.
Forgetting rigging weight. Slings, spreader bars, and other rigging equipment add to the total load the crane needs to lift, not just the item itself.
Ignoring site access. A crane’s tonnage means nothing if it can’t physically get into position on your site. Ground conditions, space for outriggers, and overhead obstructions all matter.
Not confirming boom length needs upfront. If your lift requires extra reach, a smaller-tonnage crane might not have enough remaining capacity at that boom length — even if it looks sufficient on paper.
Crane Rental Abu Dhabi: Where to Book Your Mobile Crane
At Master Tiger General Transport, we provide mobile crane rental from 25 to 200 tons across Abu Dhabi, Dubai, and the wider UAE. Every crane is operated by a trained, licensed professional, and our team assesses load weight, site access, and safety requirements before every job — so you get the right crane for your lift, not just the closest guess.
Not sure which tonnage fits your project? Contact our team with your load details, and we’ll help you choose the right crane the first time.
Frequently Asked Questions
What size crane do I need to lift a 10-ton load?
It depends on the lift radius and height, not just the load weight. A crane rated for 25 tons at close range may only be able to lift a fraction of that at a longer boom length — always check the load chart for your specific lift conditions, or ask your rental provider to confirm.
Is it cheaper to rent a smaller crane, even if it’s a tight fit for the job?
It might look cheaper upfront, but if the crane can’t safely complete the lift, you’ll end up paying for a second booking anyway — plus project delays. It’s almost always more cost-effective to book the right size the first time.
Can one crane handle multiple tonnage needs across a project?
Sometimes, if your project’s heaviest lift determines the crane size needed throughout. For projects with very different lift requirements at different stages, it may be more efficient to book different crane sizes for different phases.
How far in advance should I book a crane rental in Abu Dhabi?
This depends on demand and crane availability for crane rental in Abu Dhabi, but booking as early as possible… — especially for larger tonnage cranes — helps ensure the right equipment is available when your project needs it.
Do I need to provide rigging equipment, or does the crane rental include it?
This varies by provider. Confirm with your crane rental company whether rigging (slings, spreader bars, shackles) is included or needs to be arranged separately.
Need help choosing the right crane tonnage for your project? Get in touch with Master Tiger General Transport for mobile crane rental across Abu Dhabi and the UAE.
